HDMI signal extension up to 60 meters
It allows the transmission of video and audio signals over long distances using a single network cable. It is compatible with Cat5e and Cat6 cabling to maintain signal integrity.
Support for Full HD and 3D resolution
It guarantees crisp image quality with native support for 1080p and 3D content. Ideal for maintaining a high-fidelity viewing experience without degradation.
Metal chassis with passive ventilation
Manufactured with a robust metal casing that protects the internal components. Includes side vents designed for efficient heat dissipation during continuous use.
LED indicators of operating status
Each unit incorporates a front LED that allows for quick verification of the connection and power status. This simplifies maintenance and diagnostics in complex installations.
External power supply for maximum stability
It features independent DC/5V inputs to ensure constant transmission power. This prevents flickering or signal loss over longer cable runs.
Optimization for professional B2B installations
Its compact 81.5mm design allows for discreet integration into suspended ceilings, rack cabinets, or behind displays. It is the standard technical solution for commercial video distribution.
Plug and Play connectivity solution
It requires no additional software configuration or drivers to operate. The transmitter (TX) and receiver (RX) system automatically synchronizes when the cabling is connected.
| Product type | HDMI over CAT extender |
| Format | Transmitter (TX) and Receiver (RX) Kit |
| Connectivity | HDMI, RJ45, DC 5V Jack |
| Network compatibility | Cat5e / Cat6 (Standard 568B) |
| Maximum resolution | Full HD 1080p |
| Video support | 3D compatible |
| Maximum range | 60 meters |
| Feeding | DC 5V |

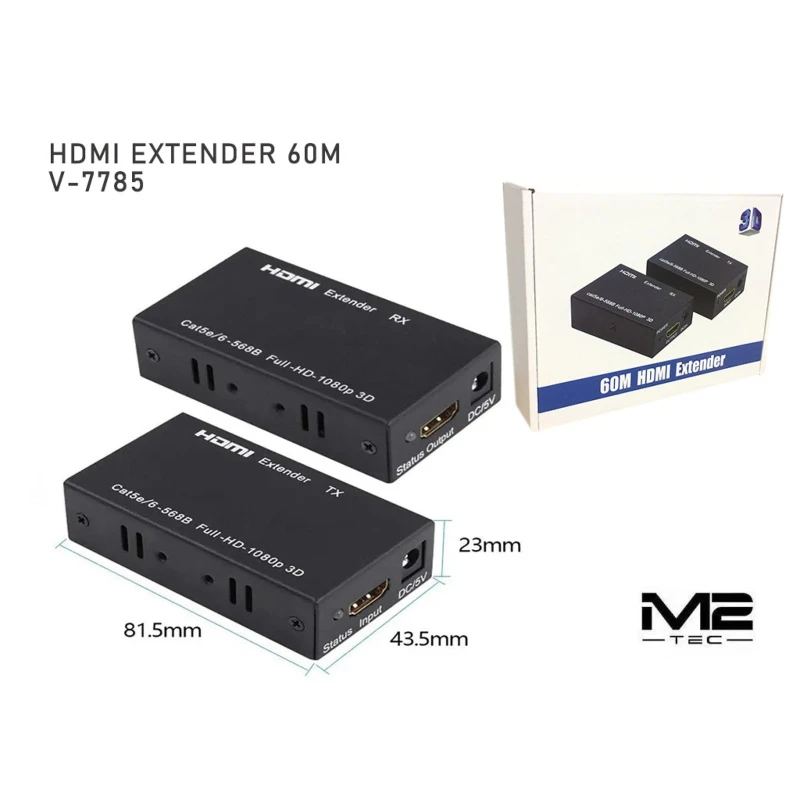

| Dimensions | 81.5mm x 43.5mm x 23mm |
| Material | Metal casing |
| Color | Black |
What is the maximum resolution this device achieves?
This extender supports a maximum resolution of Full HD 1080p and is fully compatible with 3D video signals, maintaining image fluidity throughout the extension's range.
Is the use of power supplies mandatory?
Yes, to ensure the signal reaches 60 meters without loss of synchronization or digital noise, it is necessary to connect the included 5V power supplies to the DC ports of both units.
What crimping standard should the network cable follow?
For proper operation, the Cat5e or Cat6 cable must be crimped strictly according to the TIA/EIA-568B standard at both ends of the network cable that connects the TX to the RX.
Can it work through a network switch or router?
This model is designed for a direct point-to-point connection between the transmitter and receiver using a dedicated physical cable; it is not compatible with transmission through active network equipment.
The V-7785 HDMI extender is a reliable technical solution for professionals who need to distribute high-definition signals across large spaces. Its compatibility with common network standards ensures cost-effective and efficient installation for any audiovisual project.
V-7785
