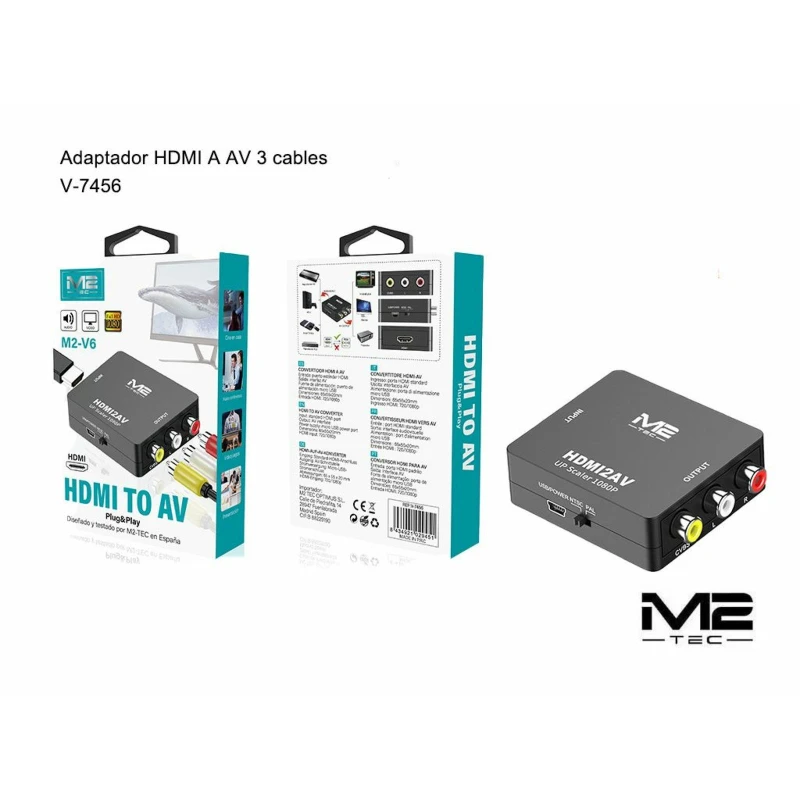

Efficient HDMI to analog signal conversion
This device transforms the HDMI digital signal into composite video (CVBS) and stereo R/L audio. It allows modern equipment to be integrated into older displays, projectors, or monitoring systems.
1080p high definition compatibility
It supports input resolutions up to 1080p at 60Hz, ensuring clear signal reception. The internal scaler processes the image to optimize the output to standard analog formats.
Ultra-compact design for discreet installations
Measuring just 66x55x20mm, this converter is ideal for tight spaces behind televisions or technical cabinets. Its lightweight chassis makes it easy to transport and manage cables.
M2-TEC Quality Certification and Testing
This product was designed and tested by M2-TEC in Spain and bears the CE marking. It ensures compliance with safety and performance standards for wholesale distribution.
System control and selection interface
It incorporates a physical selector to switch between PAL and NTSC video standards. It includes a dedicated mini USB port for external power, ensuring continuous operational stability.
Technical solution for professional environments
An indispensable tool for technical services, hotels, or educational centers that need to connect TV boxes or laptops to pre-existing RCA cabling infrastructures.
Immediate implementation via Plug & Play technology
It requires no additional drivers or software to operate. It comes in retail packaging with a hanger, optimized for display at points of sale.
| Product type | HDMI to AV (RCA) Converter |
| Usage format | Plug & Play external adapter |
| Input connectivity | 1 x HDMI Female |
| Output connectivity | 3 x RCA (Composite Video + Stereo Audio L/R) |
| Supported input resolution | 720p / 1080p |
| Output formats | PAL / NTSC (selectable) |
| Feeding | Mini USB port (5V) |
| Dimensions | 66 x 55 x 20 mm |
| Color | Black |
What is the maximum input resolution supported by the converter?
The device is compatible with high-definition HDMI input signals, supporting resolutions up to 1080p. The internal processor scales and adapts this signal to be compatible with the analog RCA output while maintaining stability.
Is it compatible with older televisions from different regions?
Yes, the converter has a side switch that allows you to manually select between PAL and NTSC. This ensures that the video signal is correctly adapted to the television standard of the connected monitor or projector.
Does it require an external power source to operate?
Although some HDMI ports can supply power, it is recommended to use the side mini USB port connected to a 5V source. This ensures that the conversion circuit operates at the necessary voltage, preventing signal loss or flickering.
Does this adapter perform the reverse AV to HDMI conversion?
No, this model is a unidirectional converter designed exclusively to transform an HDMI source into an RCA (AV) output. To convert older analog equipment to HDMI-enabled televisions, the reverse model would be required.
A robust and versatile adapter that solves compatibility problems between hardware of different generations. Its technical reliability makes it an essential accessory for any consumer electronics catalog.
V-7456
