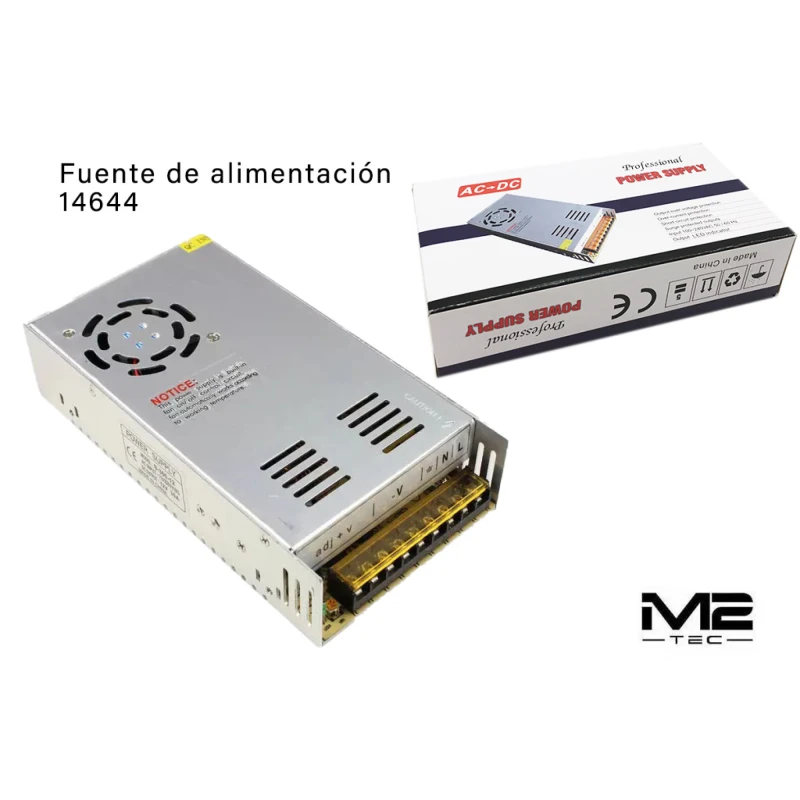

5V 60A Switching Power Supply
Security Policy
Your data and payments are protected with secure, encrypted systems.
Delivery Policy
Fast shipping with real-time tracking until your order arrives.
Return Policy
Easy, hassle-free returns within the established period.
Garantizamos un pago seguro y protegido
Efficient AC to DC conversion
This power supply converts alternating current (AC) into a stable direct current (DC) output for demanding electronic devices. Its switched-mode technology ensures optimal performance with minimal energy loss as heat.
High-security terminal block
It features a terminal block with screws and a transparent protective cover to prevent accidental contact. It includes specific terminals for live, neutral, ground, and multiple positive and negative voltage outputs.
Metal chassis with active ventilation
Manufactured in a perforated aluminum casing that facilitates passive heat dissipation. It incorporates an internal fan with automatic temperature control that activates when the equipment requires additional cooling under load.
Comprehensive protection against electrical failures
The internal circuitry is designed to protect connected components against overvoltages, short circuits, and overloads. It is CE certified, ensuring compliance with European safety standards.
Precision adjustment of the output voltage
It incorporates a manual potentiometer called 'adj +v' located next to the output terminals. This allows the installer to accurately calibrate the voltage required to compensate for voltage drops in long cable runs.
Industrial design for heavy-duty use
Its robust structure makes it ideal for large-scale LED lighting systems, digital signage, and automation projects. It is capable of centralizing power from multiple peripherals into a single, reliable power supply point.
Technical solution for professional environments
It represents a reliable option for installers and technical services requiring high-capacity components. Its compact form factor facilitates integration into standard electrical cabinets and metal racks.
| Product type | Switching power supply |
| Format | Industrial metal enclosure with active fan |
| Entrance | 100-240V AC 50/60Hz |
| Exit | 5V DC |
| Amperage | 60A |
| Exit control | Fine adjustment potentiometer (+/-) |
| Protection systems | Overvoltage, overcurrent and short circuit |
| Indicators | Output status LED |
| Certifications | EC |
| Color | Metallic silver |
How does a fan cooling system work?
The fan is controlled by an intelligent thermal circuit. It only activates when the internal temperature reaches a certain threshold or the load is very high, optimizing energy consumption and reducing noise at low loads.
Can the exact output voltage be regulated?
Yes, the power supply includes a manual adjustment knob next to the terminals. This allows you to slightly vary the 5V output to suit the specific load requirements or to compensate for voltage drop due to cable length.
Is it suitable for powering high-power LED strips?
It's an ideal product for this application thanks to its 60-amp capacity. It allows you to power large sections of 5V LED strips, maintaining uniform brightness and a constant current delivery without dangerous fluctuations for the diodes.
What precautions should be taken for its installation?
As this is an IP20 rated power supply, it is not watertight and must be installed indoors or inside enclosures protected from water and excessive dust. It is recommended to leave free space around the grilles to ensure proper airflow.
This professional switched-mode power supply is a key component for infrastructures requiring an uninterrupted and stable power supply. Its advanced technical construction and safety systems ensure long-lasting operation in industrial and commercial applications.
