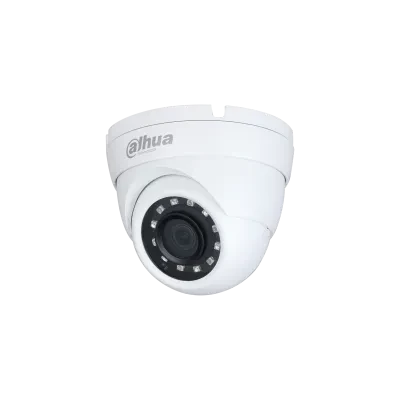

2 MP, 3.6mm HDCVI infrared eye camera, POC, DH-HAC-HDW1200MP, DAHUA

Fixed lens : 3.6mm
  Security Policy

Your data and payments are protected with secure, encrypted systems.

  Delivery Policy

Fast shipping with real-time tracking until your order arrives.

  Return Policy

Easy, hassle-free returns within the established period.

Garantizamos un pago seguro y protegido

DH-HAC-HDW1200MP

2MP HDCVI IR Eyeball Camera

* The parameters and datasheets below can only be applied to 1200-S5 series.

> Max 30fps@1080P

> HD and SD output switchable

> 3.6mm fixed lens (2.8 mm optional)

> Max. IR length 30 m, Smart IR

> IP67, DC12V (NOT INCLUDED).



Camera

Image sensor

1/2.7 inch CMOS

Effective pixels

1920(H)×1080(V), 2MP

Scanning system

Progressive

Electronic shutter speed

PAL: 1/25 s–1/100000 s
NTSC: 1/30 s–1/100000 s

Signal-to-noise ratio

>65 dB

Minimum lighting

0.02 Lux/F1.9, 30 IRE, 0 Lux IR on

Fill light operating distance

30 m (98.4 ft)

Infrared on/off control

Auto; manual

Number of IR LEDs

12

Pan/tilt/rotation range

Panoramic: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°

Lens

Lens type

Fixed focus

Mounting type

M12

Focal length

2.8 mm; 3.6 mm

Maximum opening

F1.9

Field of view

2.8 mm: 119° x 101° x 54°

(diagonal x horizontal x vertical)
3.6 mm: 100° x 84° x 45°

(diagonal x horizontal x vertical)

Iris type

fixed iris

Close focus distance

2.8 mm: 0.5 m (1.7 ft)
3.6 mm: 0.8 m (2.6 ft)

DORI Distance

Lens

Detect

Notice

Recognize

Identify

2.8 mm

38.6 m (126.6 ft)

15.4 m (50.5 ft)

7.7 meters

(25.3 feet)

3.9 m

(12.8 feet)

3.6 mm

49.7 m (163.1 ft)

19.9 m (65.3 ft)

9.9 meters

(32.5 feet)

5 meters

(16.4 feet)

Video

Frame rate

CVI: 1080P at 25/30fps; 720P at 25/30fps; 720P at 50/60fps;
AHD: 1080P at 25/30fps; 720P at 25/30fps;
TVI: 1080P at 25/30 fps; 720P at 25/30fps; 720P at 50/60fps;
CVBS: 960H

Resolution

1080P (1920×1080); 720P (1280×720); 960H (960×576/960×480)

Day/Night

Automatic ICR switching

BLC

BLC/HLC/DWDR

WDR

DWDR

White balance

Auto; manual

Gain control

Auto; manual

Noise reduction

NR 2D

Smart infrared

Yeah

Electronic defroster

Yeah

Mirror

Off/On

Privacy masking

On/Off (area 8, rectangle)

Certifications

Certifications

CE (EN55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN55024:2010+A1:2015, EN 55035:2017, EN50130-4:2014:1414FCC)
(CC ) FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Port

Video output

CVI/TVI/AHD/CVBS video output options via a BNC port.

Force

Power supply

12 V ±30 % DC

Energy consumption

Max. 3.1 W (12 V DC, infrared activated)

Atmosphere

Operating temperature

-40 °C to +60 °C (-40 °F to 140 °F); <95% (non-condensing)

Storage temperature

-40 °C to +60 °C (-40 °F to 140 °F); <95% (non-condensing)

Degree of protection

IP67

Structure

Box

Metal throughout the casing

Camera dimensions

φ93.4mm × 79.4mm (φ3.68" × 3.13" )

Net weight

0.27 kg (0.60 lb)

Gross weight

0.34 kg (0.75 lb)
DH-HAC-HDW1200MP

Data sheet

Resolution
2MP
