System
|
|
Main processor
|
Industrial grade processor
|
|
Operating system
|
Embedded Linux
|
|
Operating interface
|
Web; Local graphical user interface
|
|
SMD Plus
|
|
SMD Plus Recorder
|
4 channels: Secondary filtering for people and motor vehicles, reducing false alarms caused by leaves, rain and changes in lighting conditions.
|
|
Audio and video
|
|
Analog camera input
|
8 BNC ports, compatible with auto-detection HDCVI/AHD/TVI/CVBS
|
|
Camera input
|
1. CVI: 1080p at 25/30fps, 720p at 25/30fps.
2. TVI: 1080p at 25/30 fps, 720p at 25/30 fps.
3. AHD: 1080p at 25/30fps, 720p at 25/30fps.
|
|
IP camera input
|
Up to 10 IP access channels.
2 IP channels by default + 8 channels (analog channels are converted to IP channels)
Input bandwidth: 40 Mbps, recording bandwidth: 40 Mbps, and output bandwidth: 40 Mbps
*After adding IP channels beyond the existing channels, the AI (SMD) function will be disabled.
|
|
Encoding capability
|
Mainstream:
8 channels: the first channel 1080N/720p@(1 fps–25/30 fps), the others 1080N/720p@(1 fps–15 fps); 960H/D1/CIF@(1 fps–25/30 fps)
Subchannel:
8 channels: CIF@(1 fps–7 fps)
|
|
Double flow
|
Yeah
|
|
Video frame rate
|
PAL: 1 fps/s–25 fps
NTSC:1 fps/s–30 fps
|
|
Video bitrate
|
32 kbps–4096 kbps
|
|
Audio sampling
|
8 kHz, 16 bits
|
|
Audio bit rate
|
64 kbps
|
|
Video output
|
1 HDMI, 1 VGA
HDMI/VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
|
|
Multi-screen display
|
When IP extension mode is not enabled: 1/4/8/9
When IP extension mode is enabled: 1/4/8/9/16
|
|
Access to third-party cameras
|
ONVIF; Panasonic; Sony; Axis; Arecont; Samsung
|
|
Compression standard
|
|
Video compression
|
AI coding; H.265+; H.265; H.264+; H.264
|
|
Audio compression
|
G.711a; G.711u; PCM
|
|
Grid
|
|
Network protocol
|
HTTP; HTTPS; TCP/IP; IPv4/IPv6; Wi-Fi; 3G/4G; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P; UPnP; IP filter; FTP; Alarm server; IP Search (Compatible with Dahua IP cameras, DVR, NVS, etc.)
|
|
Access from mobile phone
|
iOS; Android
|
|
Interoperability
|
ONVIF 22.06 (Profile T; Profile S; Profile G); CGI; SDK
|
|
Browser
|
Chrome,
Internet Explorer 9 or later,
Firefox
|
|
Network mode
|
Single direction mode
|
|
Recording and playback
|
|
Recording mode
|
General; motion detection; smart; alarm
|
|
Recording and playback
|
1/4/9
|
|
Backup method
|
USB device and network
|
|
Playback mode
|
Instant playback, general playback, event playback, playback by tags, smart playback (motion detection)
|
|
Alarm
|
|
General alarm
|
Motion detection; external camera alarm; network alarm; PIR alarm
|
|
Anomaly alarm
|
Error (no disk, disk error, low space, insufficient storage quota; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera disconnected
|
|
Smart alarm
|
SMD Plus
|
|
Alarm link
|
Record; snapshot (panoramic); external alarm output IPC; voice prompt; buzzer; log; preset; email
|
|

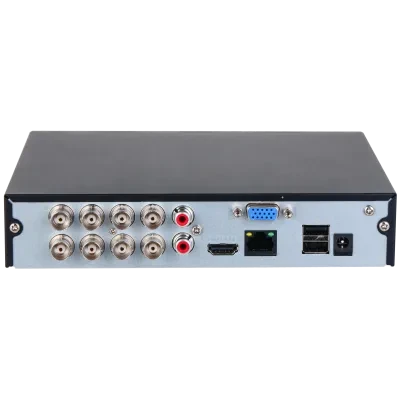

Ports
|
|
Audio input
|
1-channel RCA,
8-channel BNC (coaxial audio)
|
|
Audio output
|
1-channel RCA
|
|
Two-way conversation
|
Yes (it shares the same audio input as the first channel)
|
|
Hard drive interface
|
1 SSD: 1 TB (replaceable with 256 GB or 512 GB)
It is stored for 22 days with the default settings.
|
|
USB
|
2 (2 rear USB 2.0 ports)
|
|
HDMI
|
1
|
|
VGA
|
1
|
|
Network port
|
1 (10/100 Mbps Ethernet port, RJ-45)
|
|
General
|
|
Power supply
|
12V DC, 1.5A
|
|
Energy consumption
|
<7 W (with SSD)
|
|
Net weight
|
0.62 kg (1.37 lb)
|
|
Gross weight
|
1.13 kg (2.49 lb)
|
|
Product dimensions
|
198.3 mm × 202.9 mm × 41.5 mm (7.81'' × 7.99'' × 1.63'') (Width × Depth × Height)
|
|
Packaging dimensions
|
332.0 mm × 64.0 mm × 240.0 mm (13.08'' × 2.52'' × 9.45'') (Width × Depth × Height)
|
|
Operating temperature
|
-10°C to +45°C (+14°F to +113°F)
|
|
Operating humidity
|
0%–90% (HR)
|
|
Facility
|
Office
|
|
Certifications
|
CE: CE-LVD: EN 60950-1/IEC 60950-1
CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024
FCC: Part 15 Subpart B
|
