System
|
|
Main processor
|
Industrial grade processor
|
|
Operating system
|
Embedded Linux
|
|
Operating interface
|
Web; Local graphical user interface
|
|
Quick selection
|
|
QuickPick 2.0 AI per recorder (Number of channels)
|
2 channels
|
|
Perimeter protection
|
|
AI-powered perimeter performance per recorder (number of channels)
|
Advanced mode: 2 channels, 10 IVS rules for each channel.
General mode: 4 channels, 10 IVS rules for each channel.
|
|
Facial detection
|
|
Facial attributes
|
6 attributes
|
|
AI facial detection performance by recorder (number of channels)
|
2 channels (up to 8 facial images per second on each channel)
|
|
Privacy protection
|
|
AI privacy protection performance per recorder (number of channels)
|
1 channel
|
|
Facial recognition
|
|
Facial database capacity
|
Up to 10 facial databases with 20,000 images.
|
|
AI facial recognition performance by recorder (number of channels)
|
2 channels
|
|
SMD Plus
|
|
SMD Plus Recorder
|
4 channels: Secondary filtering for people and vehicles, reducing false alarms caused by leaves, rain and changes in lighting conditions.
|
|
SMD Plus by Camera
|
8 channels
|
|
AI-powered video quality analysis
|
|
AI-powered video quality analysis by recorder
|
4 channels: Supports detection of brightness levels, color cast, blur, overexposure, contrast levels, black and white.
|
|
Scene change
|
|
Scene change using recorder
|
1 channel
|
|
Irregular black block masking
|
|
Masking of irregular black blocks by recorder
|
1 channel
|
|
EPTZ
|
|
EPTZ by recorder
|
1 channel
|
|
Audio and video
|
|
Analog camera input
|
4 BNC ports, compatible with auto-detection HDCVI/AHD/TVI/CVBS
|
|
Camera input
|
1. CVI: 4K at 25/30 fps; 4K at 12.5/15 fps; 6 MP at 20 fps; 5MP at 25fps; 5MP at 20fps; 4 MP at 25/30 fps; 1080p at 25/30 fps; 720p at 25/30 fps; 720p at 50/60 fps.
2. TVI: 4K at 15 fps; 5 MP (2560 x 1944) at 20 fps; 5 MP (2960 x 1665) at 20 fps; 4 MP at 25/30 fps; 3 MP at 25/30 fps; 1080p at 25/30 fps; 720p at 25/30 fps.
3. AHD: 4K at 15fps; 5MP at 20fps; 4 MP at 25/30 fps; 3 MP at 25/30 fps; 1080p at 25/30 fps; 720p at 25/30 fps.
|
|
IP camera input
|
Up to 8 IPC access channels
4 default IP channels + 4 channels (analog channels are converted to IP channels)
Input bandwidth: 64 Mbps, recording bandwidth: 64 Mbps, and output bandwidth: 64 Mbps
*Once the IP extension is enabled, EPTZ, Video Quality Analysis, Scene Change, Face Recognition, Face Detection, SMD, Perimeter Protection, QuickPick 2.0 and Privacy Protection will not be available.
|
|
Encoding capability
|
Encoding enhancement disabled:
Mainstream:
the first channel 4K@(1 fps–10 fps), the others 4K@(1 fps–7 fps);
the first channel 5 MP@(1 fps–20 fps), the others 5 MP@(1 fps–12 fps);
the first channel 4K-N/4 MP/3 MP@(1 fps–20 fps), the others 4K-N/4 MP/3 MP@(1 fps–15 fps);
4K@(1fps–8fps); 6 MP@(1fps–10fps); 5 MP@(1fps-15fps);4M-N/1080p/720p/960H/D1/CIF@(1fps–25/30fps)
Subchannel:
960H@(1fps–15fps); D1/CIF@(1fps–25/30fps)
Encoding enhancement enabled:
Mainstream:
the first channel 4K@(1 fps–15 fps), the others 4K@(1 fps–7 fps);
the first channel 6 MP at (1 fps–20 fps), the others 6 MP at (1 fps–10 fps);
the first channel 5 MP@(1 fps–25 fps), the others 5 MP@(1 fps–12 fps);
the first channel 4K-N/4 MP/3 MP@(1 fps–25/30 fps), the others 4K-N/4 MP/3 MP@(1 fps–15 fps);
4K/6MP@(1fps–10fps);5MP@(1fps-15fps); 4M-N/1080p/720p/960H/D1/CIF@(1fps–25/30fps)
Subchannel:
960H@(1fps–15fps); D1/CIF@(1fps–25/30fps)
*When the Encoding Enhancement feature is enabled, EPTZ, Video Quality Analysis, Scene Switching, Face Recognition, Face Detection, Perimeter Protection, QuickPick 2.0, and Privacy Protection cannot be used.
|
|
Double flow
|
Yeah
|
|
Video bitrate
|
32 kbps–6144 kbps
|
|
Audio sampling
|
8 kHz, 16 bits
|
|
Audio bit rate
|
64 kbps
|
|
Video output
|
1 HDMI, 1 VGA
HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
*The output of simultaneous/heterogeneous video sources for VGA and HDMI is configurable.
|
|
Multi-screen display
|
When IP extension mode is not enabled: 1/4
When IP extension mode is enabled: 1/4/8/9
|
|
Access to third-party cameras
|
Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
|
|
Compression standard
|
|
Video compression
|
AI coding; Intelligent H.265+; H.265; Intelligent H.264+; H.264
|
|
Audio compression
|
G.711a; G.711u; PCM
|
|
Grid
|
|
Network protocol
|
HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP filter; FTP; DDNS; SNMP; Alarm server; P2P; Automatic registration; IP Search (Compatible with IP cameras, DVR, NVS, etc.)
|
|
Access from mobile phone
|
iOS; Android
|
|
Interoperability
|
ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK
|
|
Browser
|
Chrome; EI; Safari; Edge; Firefox
|
|
Recording and playback
|
|
Recording mode
|
General; alarm; motion detection; smart; POS
|
|
Recording and playback
|
1/4
|
|
Backup method
|
USB device and network
|
|
Playback mode
|
Instant playback; general playback; event playback; tag playback; smart playback
|
|
Alarm
|
|
General alarm
|
Motion detection; alarm box; HDCVI alarm; external camera alarm; network alarm; PIR alarm
|
|
Anomaly alarm
|
Error (no disk, disk error, low space, insufficient storage quota; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera disconnected
|
|
Smart alarm
|
Facial detection; facial recognition; perimeter protection; SMD Plus
|
|
Alarm link
|
Record; snapshot (panoramic); external alarm output IPC; audio; buzzer; log; preset; email
|
|

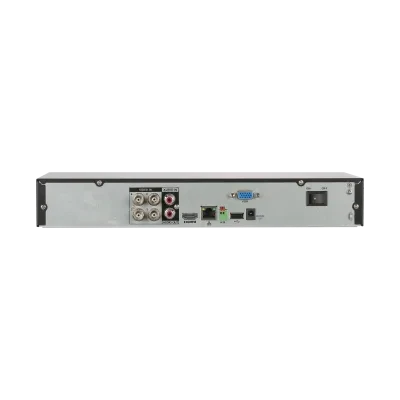

Ports
|
|
Audio input
|
1-channel RCA
4-channel BNC connector (coaxial audio)
|
|
Audio output
|
1-channel RCA
|
|
Two-way conversation
|
Yes (it shares the same audio input as the first channel)
|
|
Disk interface
|
1 SATA port. Up to 16 TB. This limit varies depending on ambient temperature.
|
|
RS-485
|
1
|
|
USB
|
2 (1 front USB 2.0 port, 1 rear USB 2.0 port)
|
|
HDMI
|
1
|
|
VGA
|
1
|
|
Network port
|
1 (10/100 Mbps Ethernet port, RJ-45)
|
|
General
|
|
Power supply
|
12V DC, 2A
|
|
Energy consumption
|
<7 W (without hard drive)
|
|
Net weight
|
0.96 kg (2.12 lb)
|
|
Gross weight
|
1.37 kg (3.03 lb)
|
|
Product dimensions
|
260.0 mm × 237.8 mm × 47.6 mm (10.24" × 9.37" × 1.87") (Width × Depth × Height)
|
|
Packaging dimensions
|
333.0 mm × 89.0 mm × 315.0 mm (13.12" × 3.51" × 12.41") (Width × Depth × Height)
|
|
Operating temperature
|
-10°C to +55°C (+14°F to +131°F)
|
|
Storage temperature
|
-20°C to +60°C (-4°F to +140°F)
|
|
Operating humidity
|
10%–90% (RH), non-condensing
|
|
Facility
|
Office
|
|
Certifications
|
CE: CE-LVD: IEC 62368-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024, EN 55035
|
