System
|
|
Main processor
|
Industrial grade processor
|
|
Operating system
|
Embedded Linux
|
|
Operating interface
|
Web; Local graphical user interface
|
|
SMD Plus
|
|
SMD Plus Recorder
|
8 channels: Secondary filtering for people and motor vehicles, reducing false alarms caused by leaves, rain and changes in lighting conditions.
|
|
Audio and video
|
|
Analog camera input
|
16 BNC ports, CVI access by default, supports automatic detection of HDCVI/AHD/TVI/CVBS.
|
|
Camera input
|
1. CVI: 1080p at 25/30fps, 720p at 25/30fps
2. TVI: 1080p at 25/30 fps, 720p at 25/30 fps
3. AHD: 1080p at 25/30fps, 720p at 25/30fps
4. CVBS: PAL/NTSC
|
|
IP camera input
|
Up to 18 IPC access channels
2 IP channels by default + 16 channels (analog channels are converted to IP channels)
Input bandwidth: 64 Mbps, recording bandwidth: 64 Mbps, and output bandwidth: 64 Mbps
*Once IP channels are added beyond the existing channels, the AI (SMD) function will be disabled.
|
|
Encoding capability
|
Main flow:
the first channel 1080N, 720p@ (1 fps–25/30 fps), the others
1080N, 720p@ (1fps–15fps); 960H, D1, CIF@ (1fps–25/30fps)
Secondary flow:
CIF@ (1 fps–7 fps)
|
|
Double flow
|
Yeah
|
|
Video bitrate
|
32 kbps–6144 kbps
|
|
Audio sampling
|
8 kHz, 16 bits
|
|
Audio bit rate
|
64 kbps
|
|
Video output
|
1 HDMI, 1 VGA
HDMI/VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
|
|
Multi-screen display
|
1/4/8/9/16
|
|
Access to third-party cameras
|
ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Samsung
|
|
Compression standard
|
|
Video compression
|
AI coding; H.265+; H.265; H.264+; H.264
|
|
Audio compression
|
G.711a; G.711u; PCM
|
|
Grid
|
|
Network protocol
|
HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P
|
|
Access from mobile phone
|
iOS, Android
|
|
Interoperability
|
ONVIF 21.12; CGI compatible
|
|
Browser
|
Chrome,
Internet Explorer 9 or later,
Firefox
|
|
Network mode
|
Single direction mode
|
|
Recording and playback
|
|
Recording mode
|
General, motion detection, alarm;
|
|
Recording and playback
|
1/4/9/16
|
|
Backup method
|
USB device and network
|
|
Playback mode
|
Instant playback, general playback, event playback, tag playback
|
|
Alarm
|
|
General alarm
|
Motion detection, video loss, tampering
|
|
Anomaly alarm
|
No disk, disk error, low space, offline, IP conflict, MAC conflict
|
|
Alarm link
|
Record, snapshot (panoramic), external alarm output IPC, access controller, voice prompt, buzzer, log, preset, email
|
|

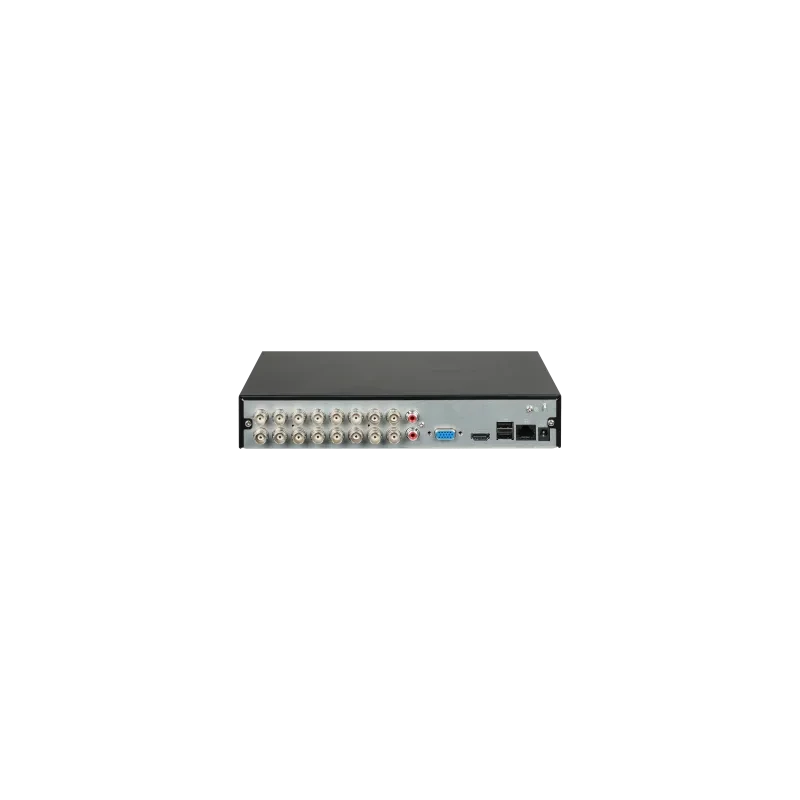

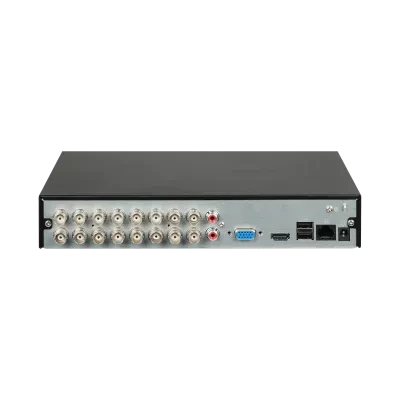

Ports
|
|
Audio input
|
1-channel RCA,
16 channel BNC (coaxial audio)
|
|
Audio output
|
1-channel RCA
|
|
Two-way conversation
|
Yes (it shares the same audio input as the first channel)
|
|
Hard drive interface
|
1 SSD: 1 TB (replaceable with 256 GB or 512 GB)
It is stored for 11 days with the default settings.
|
|
USB
|
2 USB ports (USB 2.0)
|
|
HDMI
|
1
|
|
VGA
|
1
|
|
Network port
|
1 (10/100 Mbps Ethernet port, RJ-45)
|
|
General
|
|
Power supply
|
12V DC, 2A
|
|
Energy consumption
|
<10 W (with SSD)
|
|
Net weight
|
0.89 kg (1.96 lb)
|
|
Gross weight
|
1.42 kg (3.13 lb)
|
|
Product dimensions
|
260.0 mm × 231.4 mm × 47.6 mm (10.24'' × 9.11'' × 1.87'') (Width × Depth × Height)
|
|
Packaging dimensions
|
333.0 mm × 315.0 mm × 89.0 mm (13.11" × 12.40" × 3.50") (Width × Depth × Height)
|
|
Operating temperature
|
-10°C to +55°C (+14°F to +131°F)
|
|
Operating humidity
|
0%–90% (HR)
|
|
Facility
|
Office
|
|
Certifications
|
FCC: Part 15 Subpart B
CE: CE-LVD: EN 60950-1/IEC 60950-1
CE-EMC: EN 61000-3-2; EN 61000-3-3; EN 55032; EN 50130; EN 55024
|
